MAN Turbo Centrifugal Compressors for Air Separation
What This Guide Covers
Overview of MAN Turbo centrifugal air compressors used in air separation plants: the RIKT series main air compressor, RG series gear‑type booster, steam‑turbine direct drive vs. gearbox drives, internal coolers and compact casings, rotor and seal systems, and key performance characteristics.
Platform and Drive Concept
MAN Turbo offers steam‑turbine direct drive for the main air compressor and booster, eliminating an intermediate gearbox and improving efficiency, simplicity and reliability. Compared with gear‑coupled alternatives, the direct train reduces losses and maintenance while keeping alignment stable.
Main Air Compressor Example RIKT125 1 1 2
Naming explains configuration: R stands for centrifugal, I for internal coolers, K for compact, T for an open‑inlet impeller, and 125 is the first‑stage impeller diameter. The notation 1 1 2 indicates intercooling layouts and the number of impellers installed. The package is optimized for low noise, high efficiency and steady duty in ASU service.

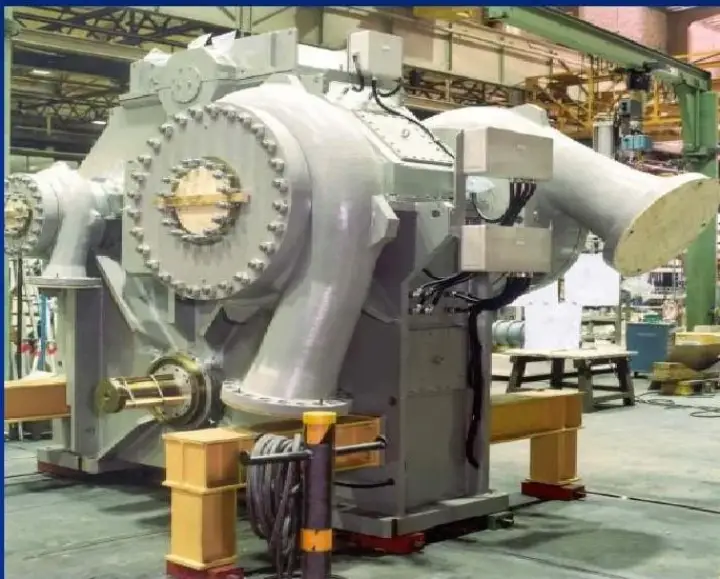

Booster Example RG40 5

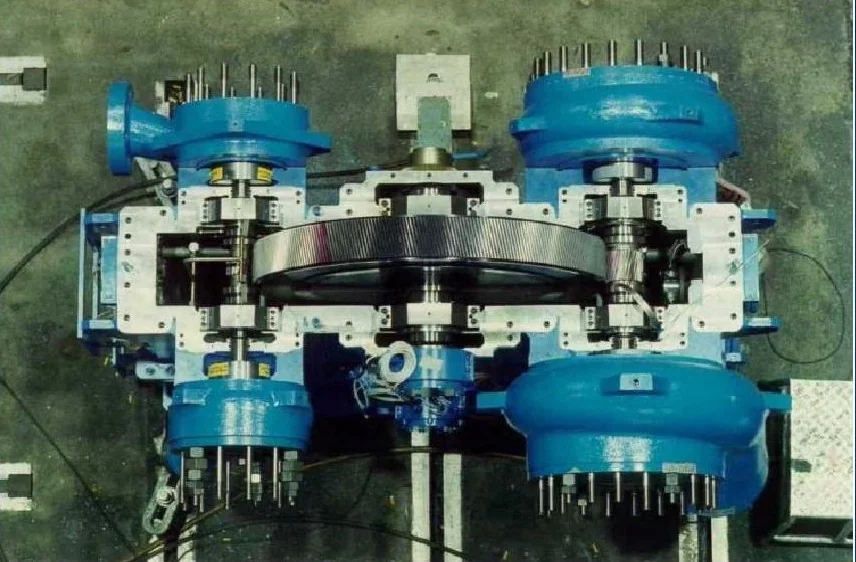

RG indicates a centrifugal booster with an integral gear train. The number 40 refers to the maximum casing diameter and 5 indicates five compression stages. The booster increases pressure downstream of the main air compressor to satisfy process requirements in the cold box or downstream units.
Rotor and Internals

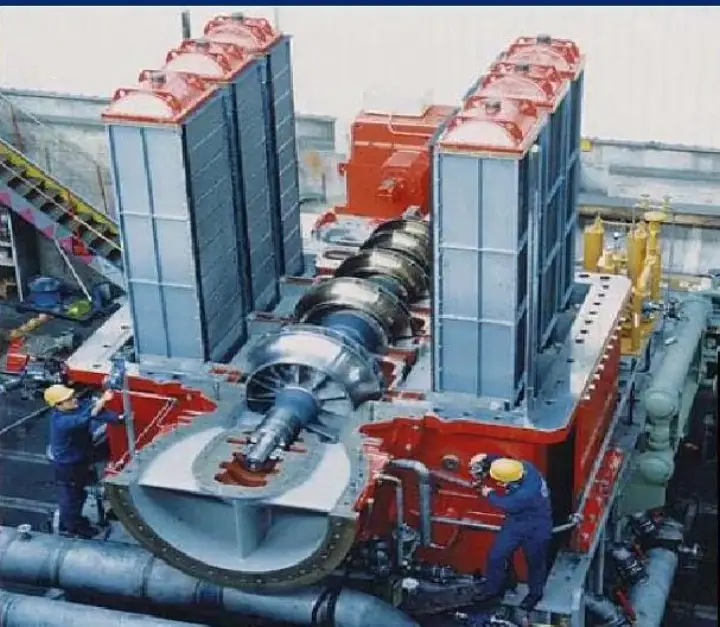

MAN rotors are dynamically balanced to tight tolerances. A typical cross‑section shows the casing, rotor, internal coolers and moisture separators. High‑speed impellers add velocity; stationary diffusers recover static pressure; non‑return and blow‑off valves protect the machine during transients.
Performance Fundamentals
Centrifugal compressors raise pressure by transferring energy from rotating impellers to the gas; diffusers convert velocity to pressure. Flow is continuous, resulting in low pulsation and stable plant operation. Efficiency depends on clean inlet filtration, well‑tuned IGV and blow‑off control, and clean coolers.
Controls and Surge Protection
Operate at constant header pressure using IGV modulation. At low demand a blow‑off valve adds artificial flow to keep the operating point away from surge. Instrumentation tracks pressures, temperatures and vibration; alarms and trips safeguard low oil pressure, high temperature and surge margin loss.
Why Air Separation Plants Choose MAN Turbo
The combination of steam‑turbine direct drive, compact internals and proven RIKT RG platforms yields high efficiency, low noise, and high reliability. References include double‑ended steam turbines for large frames and stable long‑term performance in ASU service.
